edu::wpi::hri::log::Logger Class Reference

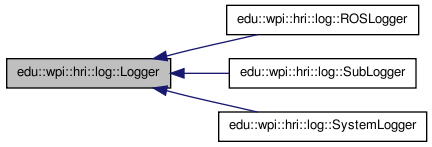

Inheritance diagram for edu::wpi::hri::log::Logger:

Public Types
enum	Colors { DEFAULT = ("\033[0m"), RED_FG = ("\033[31m"), GREEN_FG = ("\033[32m"), YELLOW_FG = ("\033[33m"), BLUE_FG = ("\033[34m"), MAGENTA_FG = ("\033[35m"), CYAN_FG = ("\033[36m"), RED_BG = ("\033[41m"), GREEN_BG = ("\033[42m"), YELLOW_BG = ("\033[43m"), BLUE_BG = ("\033[44m"), MAGENTA_BG = ("\033[45m"), CYAN_BG = ("\033[46m"), GENER = (GREEN_FG.bashColor), SPINNER = (BLUE_FG.bashColor), EXEC_TURN_FRAG = (GREEN_FG.bashColor), BML = (RED_FG.bashColor), XML = (YELLOW_FG.bashColor), POLICY = (MAGENTA_FG.bashColor), GAZE_KNOWLEDGE = (DEFAULT.bashColor + BLUE_BG.bashColor), REFERENCE = (DEFAULT.bashColor + MAGENTA_BG.bashColor), SITUATION_KNOWLEDGE = (DEFAULT.bashColor + RED_BG.bashColor), REALIZER = (BLUE_FG.bashColor), BEHAVIOR = (RED_FG.bashColor), BEHAV_LIST = (YELLOW_FG.bashColor), EXECUTOR = (GREEN_FG.bashColor), CONTROL = (CYAN_FG.bashColor), SCHEDULE = (MAGENTA_FG.bashColor), PETRI_NET = (DEFAULT.bashColor) }
enum	LoggerLevel { ALWAYS = (0), INIT = (10), POLICY_EXECUTION = (20), BML_EXECUTION = (30), BEHAVIOR = (40), SCHEDULE = (50), MATH = (60), IO = (70), MASTER = (80), ALL = (Integer.MAX_VALUE) }
Public Member Functions
abstract void	debug (LoggerLevel level, String str)
abstract void	error (String str)
abstract void	fatal (String str, int exitCode)
abstract void	info (String str)
void	printThrowable (LoggerLevel level, Throwable e)
final Logger	sub (Colors color, String name)
abstract void	warn (String str)
Static Public Member Functions
static Logger	createBase (LoggerLevel maxLevel, String type, Colors color, String name)
static Logger	createDefault ()
Protected Member Functions
final String	concat (Colors color, String str)
	Logger (LoggerLevel level, Colors color, String name)
Protected Attributes
final LoggerLevel	maxLevel
Private Attributes
final String	prefix
Static Private Attributes
static int	count = 0

Detailed Description

The Logger abstract class is used for both debugging purposes and to tell the user about what the program is doing. The known subclasses are for logging in an ROS or standard out fashion.

Author:: Aaron Holroyd (aholroyd (at) wpi (dot) edu)

Definition at line 46 of file Logger.java.

Member Enumeration Documentation

enum edu::wpi::hri::log::Logger::Colors

The Colors Enumeration is used to show text in varying colors.

Author:: Aaron Holroyd (aholroyd (at) wpi (dot) edu)

Enumerator:

DEFAULT	Display Bash text in the default color, no background is specified
RED_FG	Display Bash text in red, no background is specified
GREEN_FG	Display Bash text in greed, no background is specified
YELLOW_FG	Display Bash text in yellow, no background is specified
BLUE_FG	Display Bash text in blue, no background is specified
MAGENTA_FG	Display Bash text in magenta, no background is specified
CYAN_FG	Display Bash text in cyan, no background is specified
RED_BG	Display Bash text in red, no background is specified
GREEN_BG	Display Bash text in greed, no background is specified
YELLOW_BG	Display Bash text in yellow, no background is specified
BLUE_BG	Display Bash text in blue, no background is specified
MAGENTA_BG	Display Bash text in magenta, no background is specified
CYAN_BG	Display Bash text in cyan, no background is specified
GENER	The color to use for the default Generation level
SPINNER	The color to use for the MasterSpinner and other spinning items
EXEC_TURN_FRAG	The color to use for the Compound Communicative Actions
BML	The color to use for BML objects (realizer etc.)
XML	The color to use for printing xml informaion
POLICY	The color to print rule information in
GAZE_KNOWLEDGE	The color to print gaze knowledge informtion in
REFERENCE	The color to print everything related to references in
SITUATION_KNOWLEDGE	The color to print sitation specific knowledge in
REALIZER	The color to use for the base of the realizer node
BEHAVIOR	The color to display all of the behaviors in
BEHAV_LIST	The color to use for the list in the realizer node
EXECUTOR	The color to use for the executors in the realizer node
CONTROL	The color to use when communicating with control
SCHEDULE	The color to use when scheduling and executing schedules
PETRI_NET	The color to use when printing for a petri net

Definition at line 179 of file Logger.java.

enum edu::wpi::hri::log::Logger::LoggerLevel

This enumeration is used for specifying the maximum debug output via the Loggers. Each value has a numerical level associated with it which must be lower than the logger level specified at runtime in order for the Logger to show the user the information.

Author:: Aaron Holroyd (aholroyd (at) wpi (dot) edu)

Enumerator:

ALWAYS	This constant is used for always printing the debug information.
INIT	This constant is used for stating initialization of objects.
POLICY_EXECUTION	This constant is used for debug statements from policies
BML_EXECUTION	This constant is used for the executors in the realizer node.
BEHAVIOR	This constant is used for the behaviors.
SCHEDULE	This constant is used for scheduling the behaviors.
MATH	This constant is used for math and other calculations
IO	This constant is used for printing input and output
MASTER	This constant is used for printing Master Spinner information
ALL	This constant is used for only printing a debug message if the user wants all of the debug output.

Definition at line 257 of file Logger.java.

Constructor & Destructor Documentation

edu::wpi::hri::log::Logger::Logger	(	LoggerLevel	level,
		Colors	color,
		String	name
	)			`[inline, protected]`

Definition at line 51 of file Logger.java.

Member Function Documentation

final String edu::wpi::hri::log::Logger::concat	(	Colors	color,
		String	str
	)			`[inline, protected]`

Definition at line 71 of file Logger.java.

static Logger edu::wpi::hri::log::Logger::createBase	(	LoggerLevel	maxLevel,
		String	type,
		Colors	color,
		String	name
	)			`[inline, static]`

Create the base logger object from the type specified by the parameters.

Parameters:

	maxLevel	The max level of the logger
	type	The type of logger to create
	color	The color of the base tag to use
	name	The name of the base tag

Returns:: The created logger.

Definition at line 152 of file Logger.java.

static Logger edu::wpi::hri::log::Logger::createDefault ( ) [inline, static]

DO NOT USE THIS IN NORMAL OPERATION, helpful for testing purposes only

Returns:: a default logger.

Definition at line 169 of file Logger.java.

abstract void edu::wpi::hri::log::Logger::debug	(	LoggerLevel	level,
		String	str
	)			`[pure virtual]`

Print a debug string to the user so long as the user wants to see debugging.

Parameters:

	level	The minimum level required to print this message.
	str	The message to tell the user

Implemented in edu::wpi::hri::log::ROSLogger, edu::wpi::hri::log::SubLogger, and edu::wpi::hri::log::SystemLogger.

abstract void edu::wpi::hri::log::Logger::error ( String str ) [pure virtual]

Print an error string to the user so long as the user wants to see errors.

Parameters:

str

The message to tell the user

Implemented in edu::wpi::hri::log::ROSLogger, edu::wpi::hri::log::SubLogger, and edu::wpi::hri::log::SystemLogger.

abstract void edu::wpi::hri::log::Logger::fatal	(	String	str,
		int	exitCode
	)			`[pure virtual]`

Print a fatal string to the user and then exit the program. The specified exit code will be used when calling the System.exit() routine.

Parameters:

	str	The message to tell the user
	exitCode	The exit code for why the program had to stop

Implemented in edu::wpi::hri::log::ROSLogger, edu::wpi::hri::log::SubLogger, and edu::wpi::hri::log::SystemLogger.

abstract void edu::wpi::hri::log::Logger::info ( String str ) [pure virtual]

Print an info string to the user so long as the user wants to see information.

Parameters:

str

The message to tell the user

Implemented in edu::wpi::hri::log::ROSLogger, edu::wpi::hri::log::SubLogger, and edu::wpi::hri::log::SystemLogger.

void edu::wpi::hri::log::Logger::printThrowable	(	LoggerLevel	level,
		Throwable	e
	)			`[inline]`

Create a print stream which can output information to this logger.

Returns:: The created print stream.

Definition at line 61 of file Logger.java.

final Logger edu::wpi::hri::log::Logger::sub	(	Colors	color,
		String	name
	)			`[inline]`

Create a Sub logger from this logger which uses the given Color and the given name when printing information.

Parameters:

	color	The color to print the name in.
	name	The name to use when printing.

Returns:: The new Sub logger created.

Definition at line 134 of file Logger.java.

abstract void edu::wpi::hri::log::Logger::warn ( String str ) [pure virtual]

Print a warning string to the user so long as the user wants to see warning messages.

Parameters:

str

The message to tell the user

Implemented in edu::wpi::hri::log::ROSLogger, edu::wpi::hri::log::SubLogger, and edu::wpi::hri::log::SystemLogger.

Member Data Documentation

int edu::wpi::hri::log::Logger::count = 0 [static, private]

Definition at line 162 of file Logger.java.

final LoggerLevel edu::wpi::hri::log::Logger::maxLevel [protected]

Definition at line 49 of file Logger.java.

final String edu::wpi::hri::log::Logger::prefix [private]

Definition at line 48 of file Logger.java.

The documentation for this class was generated from the following file:

bml_lib/src/edu/wpi/hri/log/Logger.java
